Crane Outrigger Pads

Elevate the safety and stability of your crane operations with Bigfoot’s crane outrigger pads, meticulously designed for optimal performance. Achieving a stable crane support system is paramount, and our outrigger pads excel in spreading the load from stabilizer or outrigger feet across a generously sized and robust surface. This deliberate distribution minimizes overall ground pressure, establishing a secure foundation for crane machinery and vehicles. The primary focus is on ensuring the safety of both operators and ground crews throughout your operations.

Opting for our innovative Custom Composite material is a strategic decision. This material is not only meticulously engineered with consistent properties but also comes with a lifetime guarantee. The cutting-edge solution not only reduces ground pressure but also offers unmatched reliability and enduring performance. When it comes to crane support, our Custom Composite outrigger pads stand out as an ideal choice, providing a combination of innovation, dependability, and safety.

For those environmentally conscious and seeking proven durability, consider our wood pads, crafted from a robust, rigid material. This econo-friendly, renewable resource has been tested and proven in the field for decades, demonstrating exceptional strength in challenging crane operations. By choosing Bigfoot’s outrigger pads, you not only enhance stability and safety but also contribute to sustainable practices.

Elevate your crane support to new heights with Bigfoot’s outrigger pads – a trusted solution renowned for stability, safety, and exceptional, long-lasting performance. Whether you choose our advanced Custom Composite material or opt for the time-tested wood pads, rest assured that you’re investing in outrigger pads that stand the test of time, ensuring the success and safety of your crane operations. Choose Bigfoot for reliable, durable, and environmentally conscious crane outrigger pads.

Custom Composite Pads Premium (Wood) Pads
2 Inch: Custom Composite Pads
Thickness Shape Size (Inches) Part Number Square Inches Weight Vertical Load Capacity 45 Degree Load Capacity Crush rating Bigfoot Price
2 inch 36x36 P363620 1296 90 lbs. 110,000 55,000 500 Request a Quote
2 inch 42x42 P424220 1764 124 lbs. 125,000 62,000 500 Request a Quote
2 inch 48x48 P484820 2304 160 lbs. 140,000 70,000 500 Request a Quote
2 inch 60x60 P606020 3600 250 lbs. 165,000 82,000 500 Request a Quote
2 inch 36 PR3620 997 70 lbs. 100,000 50,000 500 Request a Quote
2 inch 42 PR4220 1387 97 lbs. 115,000 57,000 500 Request a Quote

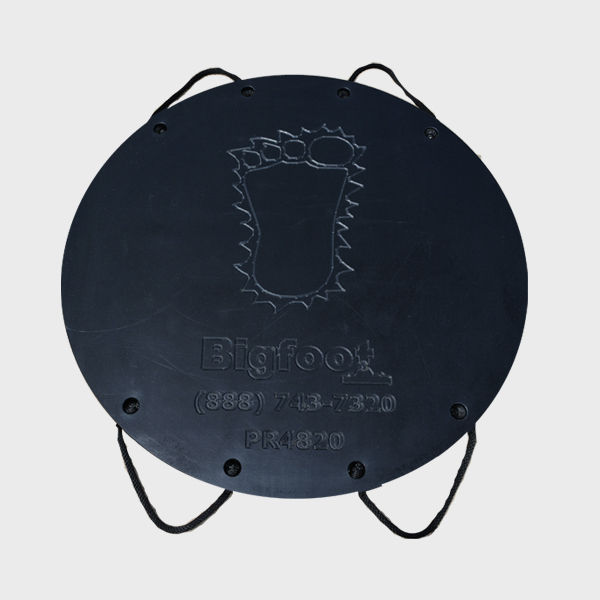

2 inch 48 PR4820 1774 123 lbs. 130,000 65,000 500 Request a Quote
2 inch 60 PR6020 2826 190 lbs. 160,000 80,000 500 Request a Quote
2.5 Inch: Custom Composite Pads
Thickness Shape Size (Inches) Part Number Square Inches Weight Vertical Load Capacity 45 Degree Load Capacity Crush rating Bigfoot Price
2.5 inch 36x36 P363625 1296 112 lbs. 115,000 57,000 500 Request a Quote
2.5 inch 48x48 P484825 2304 200 lbs. 145,000 72,000 500 Request a Quote
2.5 inch 36 PR3625 997 87 lbs. 102,000 51,000 500 Request a Quote
2.5 inch 48 PR4825 1774 155 lbs. 132,000 66,000 500 Request a Quote
3 Inch: Custom Composite Pads
Thickness Shape Size (Inches) Part Number Square Inches Weight Vertical Load Capacity 45 Degree Load Capacity Crush rating Bigfoot Price

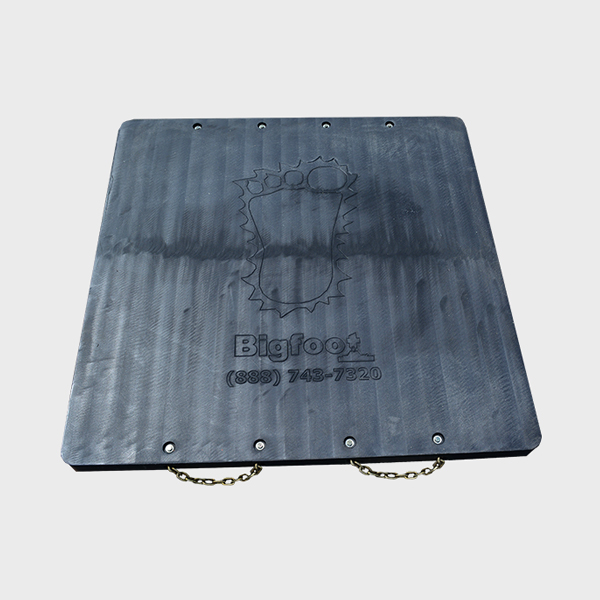

3 Inch 36x36 P363630 1296 135 lbs. 135,000 67,000 600 Request a Quote
3 Inch 48x48 P484830 2304 240 lbs. 175,000 82,000 600 Request a Quote
3 Inch 60x60 P606030 3600 360 lbs. 215,000 107,000 600 Request a Quote
3 Inch 36 PR3630 997 104 lbs. 130,000 65,000 600 Request a Quote
3 Inch 42 PR4230 1387 153 lbs. 150,000 75,000 600 Request a Quote
3 Inch 48 PR4830 1774 185 lbs. 170,000 85,000 600 Request a Quote
3 Inch 60 PR6030 2830 298 lbs. 210,000 105,000 600 Request a Quote
3 Inch 48 PR4840 1774 256 lbs. 200,000 100,000 700 Request a Quote
3 Inch 60 PR6040 2826 380 lbs. 240,000 120,000 700 Request a Quote
3 Inch: Premium Baltic Birch Pads
Thickness Shape Size (Inches) Part Number Weight Bigfoot Price Order
3 inch 36x36 W363630 90 lbs. Request a Quote Call to Order

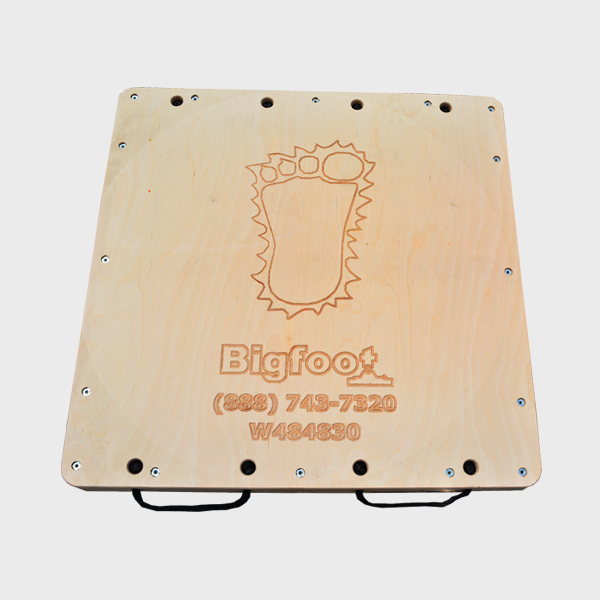

3 inch 48x48 W484830 160 lbs. Request a Quote Call to Order
3 inch 60x60 W606030 248 lbs. Request a Quote Call to Order
3 inch 36 WR3630 72 lbs. Request a Quote Call to Order
3 inch 48 WR4830 125 lbs. Request a Quote Call to Order
3 inch 60 WR6030 198 lbs. Request a Quote Call to Order
3.5 Inch: Premium Baltic Birch Pads
Thickness Shape Size (Inches) Part Number Weight Bigfoot Price Order
3.5 inch 36x36 W363635 119 lbs. Request a Quote Call to Order
3.5 inch 42x42 W424235 142 lbs. Request a Quote Call to Order
3.5 inch 48x48 W484835 215 lbs. Request a Quote Call to Order
3.5 inch 60x60 W606035 320 lbs. Request a Quote Call to Order
3.5 inch 36 WR3635 91 lbs. Request a Quote Call to Order
3.5 inch 42 WR4235 160 lbs. Request a Quote Call to Order
3.5 inch 48 WR4835 169 lbs. Request a Quote Call to Order
3.5 inch 60 WR6035 280 lbs. Request a Quote Call to Order

Features

Surfaces Handles Special Features

Standard Surface

Our standard surface is smooth for easy interaction with the outrigger foot and is easy to clean before storing for the next job.

Safety Grind

Rough grind of the pad for non slip surface on Black or Safety Orange Custom Composite.

Big Grip

The engineered design of the safety grips greatly reduces the chance of slipping by interlocking when stacked. Big Grip also digs into the ground if there are icy or slippery conditions.

Recess for Floats

Milled into the pad, custom sized to your float size on Black or Safety Orange Custom Composite.

Custom Logo

Casting your logo, a unit number, or a phone number directly into your pad clearly identifies who and to what unit the pad belongs. Available on Birch and Composite Pads.

Added Edge Color for Safety

Added color provides an important element of visibility for your crews and also helps train their eye on that last pad still left on the ground before it’s inadvertently left behind. Paint also adds one more layer of sealer on the wood.

Added Water Seal Application

Our waterproofing wood sealers prevent water damage. The coating resists mildew and UV damage. Over the past 32 years, we’ve perfected this process using only the best wood sealers available.

Bigfoot Lock Pad

The interlocking outrigger pad system allows two pads to lock in place with each other, preventing shifting or sliding and providing at least twice as much thickness at half the weight when lifting the pads. This feature can be used on pads of different dimensions allowing users to create an outrigger system that is optimized for safety and efficiency.

Nylon Rope (Our Standard)

Nylon is the strongest of all ropes in common use. It is used for absorbing shock loads because it has the ability to return to its original length after being stretched. It also has abrasion resistance, plus the yellow makes it easier to identify the pad.

Internal Pad Handles

Handles that are milled directly into and out of the pads eliminate the need for external handle materials and provide plenty of room for a gloved hand to grasp.

Safety Chain Handles

Some operators prefer the strength and stability of a metal chain. Available for heavy duty pad sizes 3” and up, these handles are rated at 3,100 lbs.

Wire Rope/Steel Choker Handles

A great alternative to our standard rope handles due to their strength and durability, which is especially useful for larger pads being used in extreme conditions such as mud, ice, or snow. The handles will not absorb moisture making for a consistent grip in every situation and will last longer than rope.

Metal Handles

Stainless Steel is strong, durable and guarantees long-lasting results.

LED Twilight Pad Light

Illuminating your work zone at night provides safety to everyone on the job site. Easily identifying your outrigger placements tells everyone where not to walk (or trip)! The lights are magnetic, waterproof, and come with a rechargeable battery and USB cable. Game changer!

Guardian Glow Strip

Glow strips provide up to 8-10 hours of illumination from just 20 minutes of natural light exposure. Strips conform to multiple surfaces and add another layer of worksite safety.
